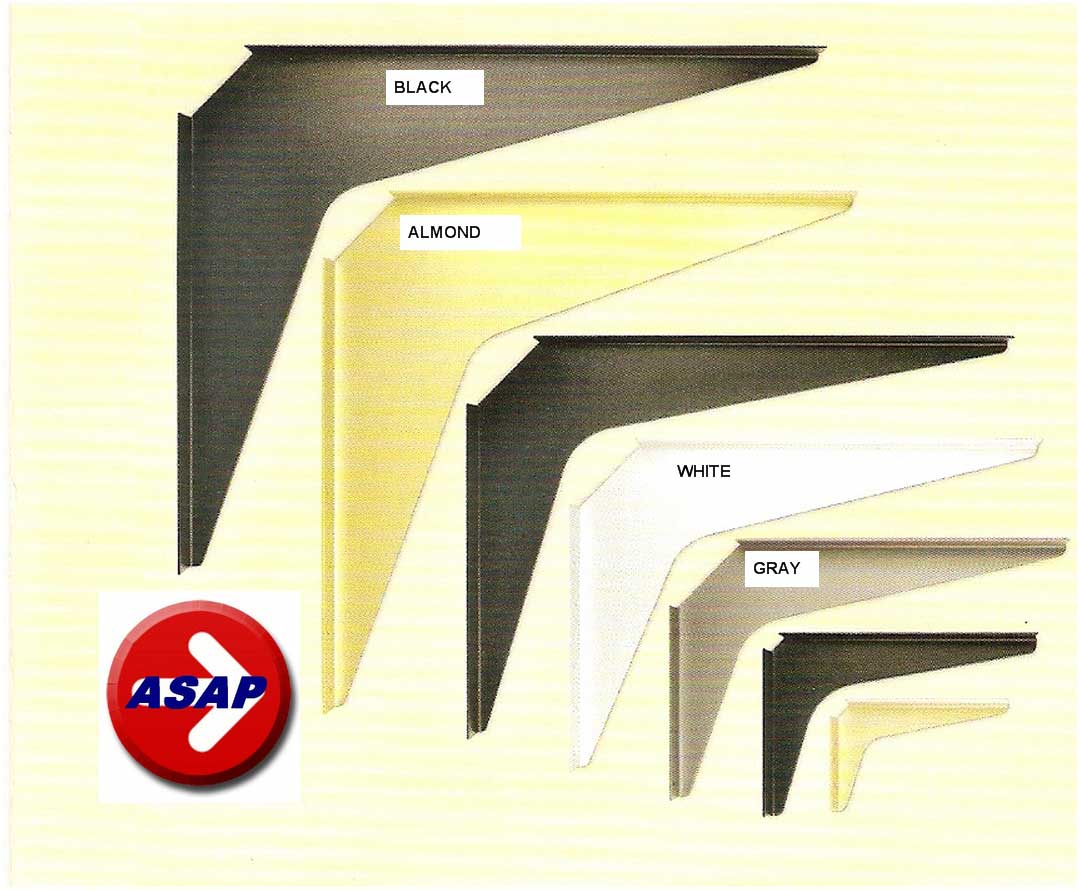

Steel Wall Brackets (pr)

$9.50$61.20

Space saving universal steel wall mounted brackets for locker room benches, ADA benches, computer workstations, shelves and counter tops
  • IN STOCK – order ships in 3-5 days or less!
  • Sold in pairs only (Left and Right)
  • 12 gauge (.110 thickness) Crinkled Powder Coated Steel
  • Capacities per bracket pair to its load deformation. 5″ x 8″ – 1520 lbs./pr., 8″ x 12″ – 2900 lbs./pr., 12″ x 18″ – 2040 lbs./pr, 15″ x 21″ – 1720 lbs./pr., 18″ x 18″ – 2100 lbs./pr., 18″ x 24″ – 2220 lbs./pr., 24″ x 24″ – 2560 lbs./pr., 24″ x 29″ – 2100 lbs./pr.

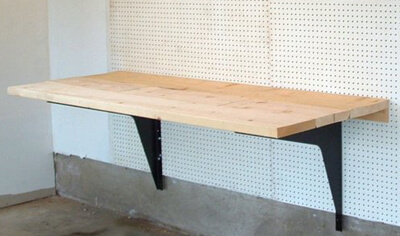

  • A universal bracket that can be used for numerous applications.  We typically use the smaller bracket to mount benches to a base in front of lockers or as shelf brackets.  The 12″ x 18″ for 20″ ADA deep benches and the 15″ x 21″ for 24″ ADA benches. The largest size is used for wall mounted ADA workstations and or countertop brackets.
  • Offers flexibility with its reversible design that allows it to be used with either length flange to mount to the wall or your top.
  • 1.5″ Forms with 1/4″ mounting holes.  Use 1/4″ Lag Bolts (not included)
  • For optimum performance space brackets no more than 16″ x 24″ apart
  • Notched for standard wall cleats and allows for wire runs.

Drawings can be be downloaded click on specified bracket –
