Concealed Brackets and Extended Concealed Brackets (per pair)


Concealed Brackets and Extended Concealed Brackets

IN STOCK – Gray Only

Priced Per Pair (order qty. of 1 and receive 2 brackets)

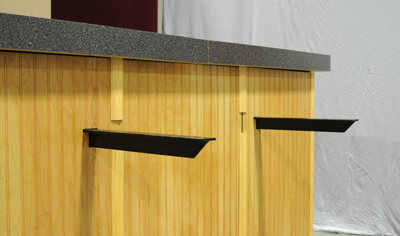

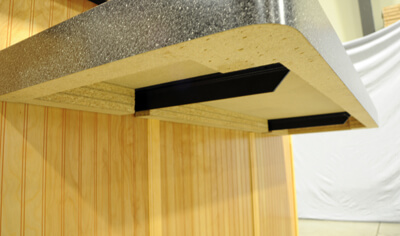

These brackets are the perfect solution for creating versatile computer workstations, garage storage shelving, ADA stations, floating islands & countertops, and much more! The vertical mounting arm of the bracket is completely concealed behind the drywall.

  • Extended Concealed Brackets have an extension above the support arm which provides superior strength
  • Load capacity to deformation per bracket (not pair), EC18-2250 lbs./ea., EC24-1160 lbs./ea., C9-2260 lbs./ea., C12-2010 lbs./ea., C18-1030 lbs./ea., C24-900 lbs./ea.

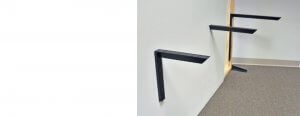

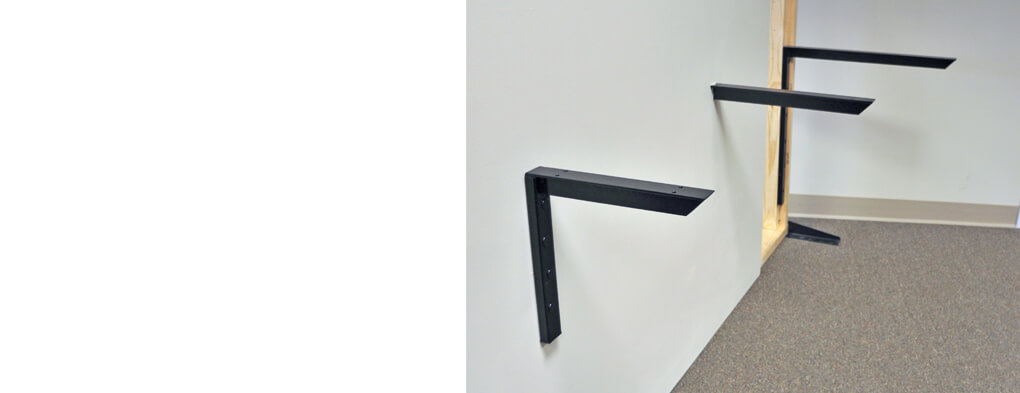

  • Mounts directly to wall studs. Mounting hardware included (3/8″- 16 x 3″ bolt assemblies)
  • All welds on reverse for easy, clean install

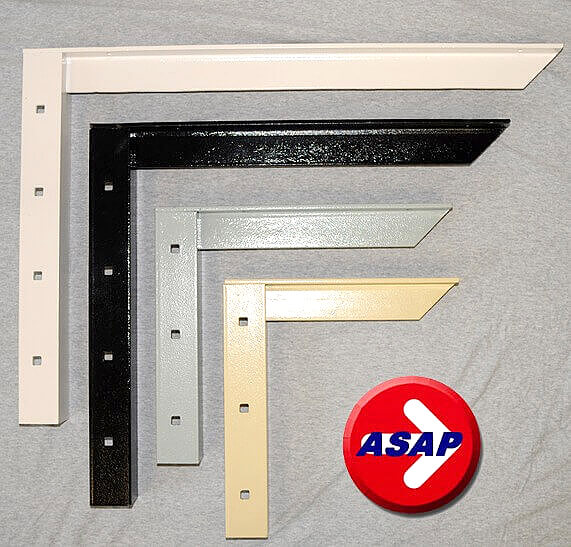

  • All brackets available from stock in Gray powder coat. Other colors available upon request.

Drawings of Brackets can be downloaded

Click here for concealed and Extended Bracket Drawings
