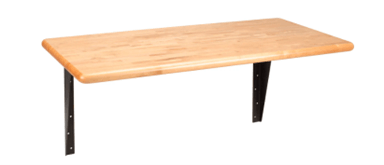

ADA Wall Mounted Locker Room Bench

$249.00 – $380.00

IN STOCK – ships in 48 hours
Butcher Block Seats
Hardwood: 1.25” thick face-glued hardwood strips with 0.625”
radius comfort edges and rounded corners with two coats
catalyzed clear lacquer top and sides with one clear coat bottom
ADA Seats supplied at 48″ x 24″, 48″ x 20″, 42″ x 24″ or 42″ x 20″
Wall Mount Brackets
Materials 1.5”W x .125” steel bracket or 12-gauge #4 stainless steel with reversible design; 3” x 3” notch for
wall cleat or wire run clearance
Recommended Span 3 ft max span between brackets
According to standard ADA guidelines the height of the top of the bench seat surface shall be 17″ minimum and 19″ maximum above the finish floor or ground.
ADA and so-called “Barrier Free” guidelines are set by the Federal Government and are sometimes modified by regional, local or lower level government agencies. Please confirm with your architect or these agencies to confirm that this product applies to your specific guidelines.
This unit is surface mounted. Installer/Construction Contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing.
Hardware to mount brackets to the floor or wall are required but not included as the
substrate is unknown.
Butcher Block Bench top specifications: Hardwood Bench Top Specs.
